Certified Replacement Batteries
for the Cessna 182Q Skylane

The Concorde Batteries listed below are certified battery replacements for the Cessna 182Q Skylane .
It is the installers responsibility to verify the aircraft manufacturer's original battery part number prior to each installation.
To view corresponding FAA/PMA or STC information click here.

Aircraft Manufacturer	Aircraft Model	Battery Voltage	Platinum Series® (Click For More)	Standard Equipment (Click For More)	Remarks / Comments	STC/FAA-PMA	Certificate Holder
Cessna	182Q Skylane	24	RG24-16		To replace the Cessna 24 volt battery P/N C614001-0106 (See IPC for Cessna P/N)	STC# SA01118WI	Concorde Battery
Cessna	182Q Skylane	24	RG24-15M		To replace the Cessna 24 volt battery P/N C614002-0102 (See IPC for Cessna P/N)If your aircraft is equipped with a Cessna battery box please contact Concorde prior to battery selection.	STC# SA01118WI	Concorde Battery
Cessna	182Q Skylane	24	RG24-15		To replace the Cessna 24 volt battery P/N C614001-0106 (See IPC for Cessna P/N)	STC# SA01118WI	Concorde Battery
Cessna	182Q Skylane	24		RG24-11M	To replace the Cessna 24 volt battery P/N C614002-0102 (See IPC for Cessna P/N)If your aircraft is equipped with a Cessna battery box please contact Concorde prior to battery selection.	STC# SA01118WI	Concorde Battery
Cessna	182Q Skylane	24		RG24-11	To replace the Cessna 24 volt battery P/N C614001-0106 (See IPC for Cessna P/N)	STC# SA01118WI	Concorde Battery
Cessna	182Q Skylane	24		RG24-10	To replace the Cessna 24 volt battery P/N C614001-0105 (See IPC for Cessna P/N)	STC# SA01118WI	Concorde Battery
Cessna	182Q Skylane	24		RG24- 9	To replace the Cessna 24 volt battery P/N C614001-0105 (See IPC for Cessna P/N)	STC# SA01118WI	Concorde Battery

RG24-16	RG24-15M	RG24-15
RG24-11M	RG24-11	RG24-10
RG24- 9

Concorde manufactures CB, RG®, and Platinum Series® Aircraft Batteries.
Click Here for Battery Series Information

Click for Applicable FAA PMA Info
Click for Drawings Below

PRODUCT SPECIFICATIONS
Voltage	Part Number	Description	Cold Cranking Amps	Rated Capacity C1 = 1 hr. rate in ampere hours	Weight
Voltage	Part Number	Description	Cold Cranking Amps	Rated Capacity C1 = 1 hr. rate in ampere hours	Lbs	Kg
24	RG24-16	Platinum Series ®	0.0	13.60	29.50	13.4
24	RG24-15M	Platinum Series ®	200.0	13.60	29.50	13.4
24	RG24-15	Platinum Series ®	200.0	13.60	29.50	13.4
24	RG24-11M	Standard Equipment	160.0	11.00	26.50	12.0
24	RG24-11	Standard Equipment	160.0	11.00	26.50	12.0
24	RG24-10	Standard Equipment	0.0	8.50	22.00	10.0
24	RG24- 9	Standard Equipment	0.0	8.50	22.00	10.0

The RG24-16 Concorde Aircraft Battery is Certified for the Cessna 182Q Skylane

The RG24-15M Concorde Aircraft Battery is Certified for the Cessna 182Q Skylane

The RG24-15 Concorde Aircraft Battery is Certified for the Cessna 182Q Skylane

The RG24-11M Concorde Aircraft Battery is Certified for the Cessna 182Q Skylane

The RG24-11 Concorde Aircraft Battery is Certified for the Cessna 182Q Skylane

The RG24-10 Concorde Aircraft Battery is Certified for the Cessna 182Q Skylane

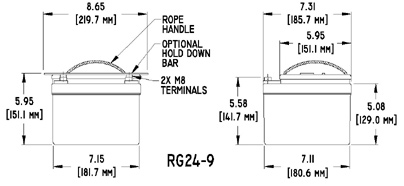

The RG24- 9 Concorde Aircraft Battery is Certified for the Cessna 182Q Skylane

The Concorde Batteries listed above are certified battery replacements for the Cessna 182Q Skylane .
To view corresponding FAA/PMA or STC information for the Cessna 182Q Skylane click here.

RG® Series - Recombinant Gas Aircraft Batteries Nonspillable at any altitude or any attitude. Valve Regulated Sealed Lead Acid. Shipped from the factory serviced and fully charged. No additional electrolyte or water required. Permanently sealed at the factory.	CB Series - Dry Charged, Vented, Aircraft Batteries Requires activation with electrolyte and charging by the end user prior to installation.
Platinum Series® - The Platinum Series® is comprised of premium hand made AGM Aircraft Batteries with excess power for many applications. Concorde sells Platinum Series® Batteries in both the CB, and RG® Battery Series.

The data/information contained herein has been reviewed and approved for general release on the basis that this document contains no export-controlled information.

Adobe Acrobat Reader is required to view PDF files. This is a free program available from the Adobe Website. Follow the download instructions on the Adobe Website to get a copy Adobe Acrobat Reader.

Concorde Aircraft Batteries are made in the United States.
