Aircraft Battery Accessories - BC-9000 Battery Charger

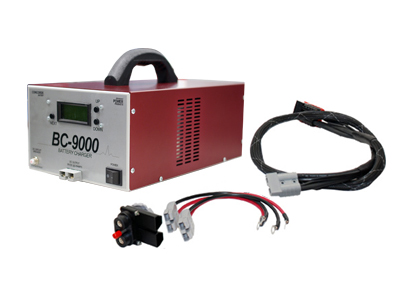

BC-9000 Battery Charger - aircraft battery accessories

BC-9000 Battery Charger

Order as Part Number 4169

BC-9000 Battery Charger Operations Manual
BC-9000 Field Calibration Procedure 25 AMP (Rev. 1/18/2017)

The BC-9000 has been designed to provide the operator with accurate battery charging with ease of operation.

Charger Features Include:
  • Adjustable output from 3.0 to 36.0 Vdc (0.1 steps)
  • Adjustable output amperes from 0.05 to 25 Adc
  • Constant voltage or constant current charge
  • Adjustable charge time from 1-999 min
  • Single or two step charge routine

    • Common Features:
  • Universal AC power input 90~264vac (47 to 64hz)
  • 4 line LCD display. 10mv voltage resolution
  • Removable DC Charge Cord
  • Anodized Aluminum Case
  • Over temperature protection
  • 115VAC power input cable
  • 1 year warranty

    • Charger Includes
  • 4169 - BC-9000 Battery Charger/DC Power Supply
  • 4169-20 - BC-9000 Instruction Manual
  • 4169-50 - BC-9000 DC Output Cable
  • 4161-60 - Battery Adaptor Cable with 5/16 (7.9mm) Ring Terminal connectors
  • 4161-70 - Battery Adaptor Cable, Quick Disconnect Assembly (4161-70 assembly consists of 4161-60 and MS3349-2 connector)


    • Optional Equipment (ordered separately):
  • CF1 - Calibration Test Device (order as part number 4170)




      • Certified Installations

      Click below for certified FAA installations of this accessory.
      P/NComment
      4169 BC9000 Battery Charger
      This battery accessory fits the following batteries:
      This does not denote certified installations by the FAA.
