The RG24-17 Aircraft Battery From
Concorde^® Battery Corporation RG24-17 Premium Concorde^® Aircraft Battery Specifications:

Battery Specifications
Primary Aircraft Purpose	General Aviation AGM Aircraft Battery
Voltage	24v
Rated Capacity C1 = 1 hr. rate in ampere hours	16
Max Weight	35 lb / 15.9 kg

Concorde^® Battery Part Number	IPP	IPR	IPP	IPR	IPP	IPR
	23°C (74°F)		-18°C (0°F)		-30°C (-22°F)
	A	A	A	A	A	A
RG24-17	750	575	500	375	350	275

Specifications subject to change without notice.

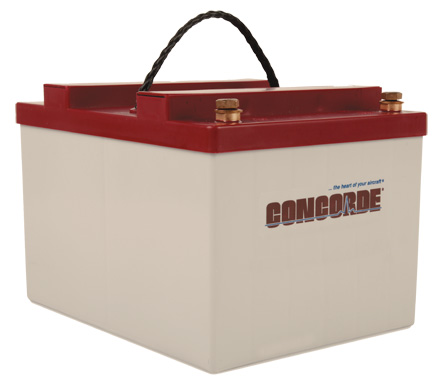

Concorde Aircraft Batteries model RG24-17
Click to enlarge

Description of the RG24-17 Aircraft Battery:

NEW 16 AH Aircraft Battery!
When you own a Concorde, rest assured that you are flying with a product designed by people distinguished in the field of lead acid aircraft battery design, who have been instrumental in writing military aircraft battery specifications and setting FAA and International Aircraft Battery Standards. You can also expect outstanding customer support from a staff with decades of certification in aircraft systems and experience in the aircraft battery industry.

Recombinant Gas - The RG® Series are low resistance, valve regulated lead acid (VRLA) batteries.

Superior starting power

Reliable essential power in the event of a generator failure

Low impedance design

Maintenance free. No addition of electrolyte or water required

Constructed with PolyGuard® separators for protection against shock and vibration

Aerobatic

Factory tested to assure airworthiness

Shipped fully charged and ready to install

Manufactured with absorbed glass mat separators (AGM)

RGÂ® Series batteries ship Hazmat EXEMPT!

The valve regulated lead acid absorbed glass mat (VRLA-AGM) battery design that has been proven and adopted by commercial airframe manufacturers and the military worldwide.

NOTE: This aircraft battery is not designed or intended for turbine aircraft engine starting applications. Warranty coverage applies to reciprocating aircraft engine starting, and standby / essential power installations.

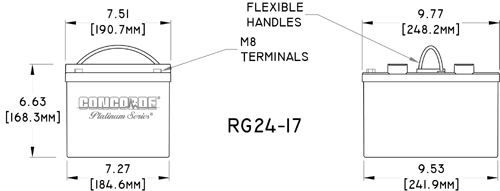

RG24-17 Concorde Aircraft Battery Drawing

The data/information contained herein has been reviewed and approved for general release on the basis that this document contains no export-controlled information.
