The RG-209 Aircraft Battery From
Concorde^® Battery Corporation The RG-209 is a Concorde^® Platinum Series^® Aircraft Battery. The Platinum Series^® is comprised of premium hand made AGM Aircraft Batteries with excess power for many applications.

RG-209 Battery Specifications:

Battery Specifications
Primary Aircraft Purpose	Helicopter and Turbine Aircraft Battery
Voltage	24v
Rated Capacity C1 = 1 hr. rate in ampere hours	22
Max Weight	50 lb / 22.7 kg

Concorde^® Battery Part Number	IPP	IPR	IPP	IPR	IPP	IPR
	23°C (74°F)		-18°C (0°F)		-30°C (-22°F)
	A	A	A	A	A	A
RG-209	900	600	700	525	575	425

Specifications subject to change without notice.

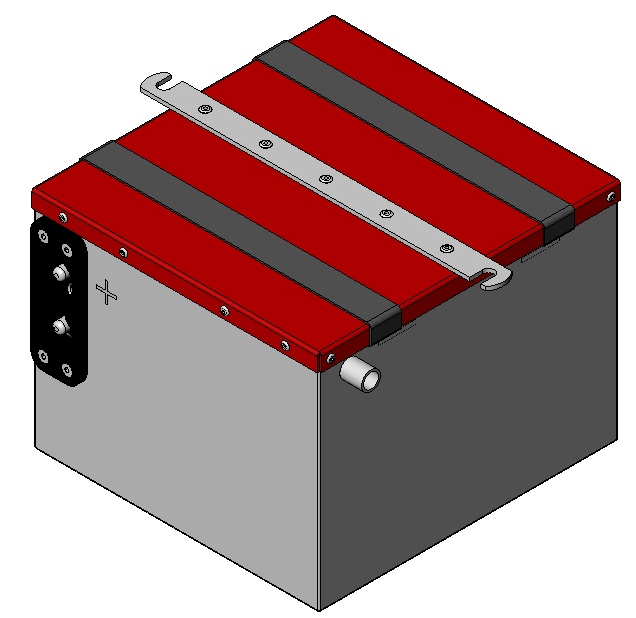

Concorde Aircraft Batteries model RG-209
Click to enlarge

Description of the RG-209 Aircraft Battery:

Concorde recombinant gas (RG® Series) valve regulated lead acid (VRLA) batteries for engine starting, emergency / essential power, and standby power applications are constructed with cutting edge Absorbed Glass Mat (AGM) technology. Concorde VRLA-AGM batteries are well known for quality and their ability to perform reliably in hot & cold climates with superior engine starting performance and excellent charge acceptance.

Superior starting power

Reliable essential power in the event of a generator failure

Low impedance design

Maintenance free

Constructed with non removable vent valves - no addition of electrolyte or water required, ever

Aerobatic

Factory tested to assure airworthiness

Shipped fully charged

Aircraft batteries rated for engine starting may be used for emergency power

RGÂ® Series batteries ship HAZMAT EXEMPT via land, sea and air

RG-209 is a lead acid aircraft battery housed in a powder coated aluminum cover and container with built in side vent tubes. Fabric lifting straps and stainless hold down bar attached to the cover.

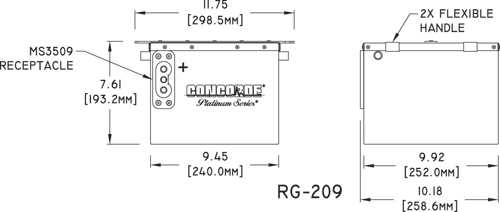

RG-209 Concorde Aircraft Battery Drawing

The data/information contained herein has been reviewed and approved for general release on the basis that this document contains no export-controlled information.
