The RG-42 Aircraft Battery From
Concorde^® Battery Corporation The RG-42 is a Concorde^® Platinum Series^® Aircraft Battery. The Platinum Series^® is comprised of premium hand made AGM Aircraft Batteries with excess power for many applications.

RG-42 Battery Specifications:

Battery Specifications
Primary Aircraft Purpose	Turbine Starting Aircraft Battery
Voltage	24v
Rated Capacity C1 = 1 hr. rate in ampere hours	17
Max Weight	43 lb / 19.5 kg

Concorde^® Battery Part Number	IPP	IPR	IPP	IPR	IPP	IPR
	23°C (74°F)		-18°C (0°F)		-30°C (-22°F)
	A	A	A	A	A	A
RG-42	900	625	600	425	450	300

Specifications subject to change without notice.

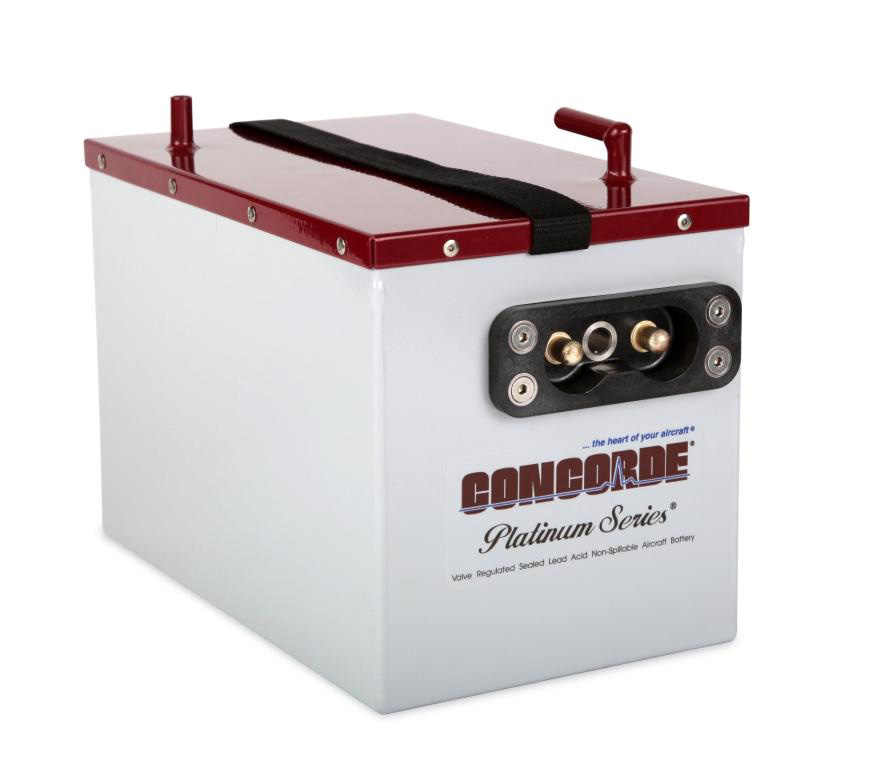

Concorde Aircraft Batteries model RG-42
Click to enlarge

Description of the RG-42 Aircraft Battery:

Recombinant Gas - The RG® Series are low resistance, valve regulated lead acid (VRLA) batteries.

Superior starting power

Reliable essential power in the event of a generator failure

Low impedance design

Maintenance free

Constructed with non removable vent valves - no addition of electrolyte or water required

Aerobatic

Factory tested to assure airworthiness

Shipped fully charged and ready to install

Manufactured with absorbed glass mat separators (AGM)

RG® Series batteries ship HAZMAT Exempt

TSO-C173 Authorized battery in a powder coated aluminum container and cover. Equipped with top vent tubes and lifting strap on cover.

RG-42 Concorde Aircraft Battery Drawing

The data/information contained herein has been reviewed and approved for general release on the basis that this document contains no export-controlled information.
