The RG-223 Aircraft Battery From
Concorde^® Battery Corporation The RG-223 is a Concorde^® Platinum Series^® Aircraft Battery. The Platinum Series^® is comprised of premium hand made AGM Aircraft Batteries with excess power for many applications.

RG-223 Battery Specifications:

Battery Specifications

Primary Aircraft Purpose	Helicopter and Turbine Aircraft Battery
Voltage	24v
Rated Capacity C1 = 1 hr. rate in ampere hours	17
Max Weight	43 lb / 19.5 kg

Concorde® Battery Part Number	IPP	IPR	IPP	IPR	IPP	IPR
	23°C (74°F)		-18°C (0°F)		-30°C (-22°F)
	A	A	A	A	A	A
RG-223	900	625	600	425	450	300

Specifications subject to change without notice.

Related Information:
Printable RG-223 Battery Specifications
RG-223 Battery Outline Drawing (PDF)
RG-223 Transportation Information
RG-223 SDS
IPP and IPR (International Electrotechnical Commission (IEC) Standard 952-1) Ratings Defined

Aircraft Battery Applications:
RG-223 Certified Battery Installations.
Click Here to See if this Battery Fits in Your Airplane
Click Here to See if this Battery is Certified for Your Airplane

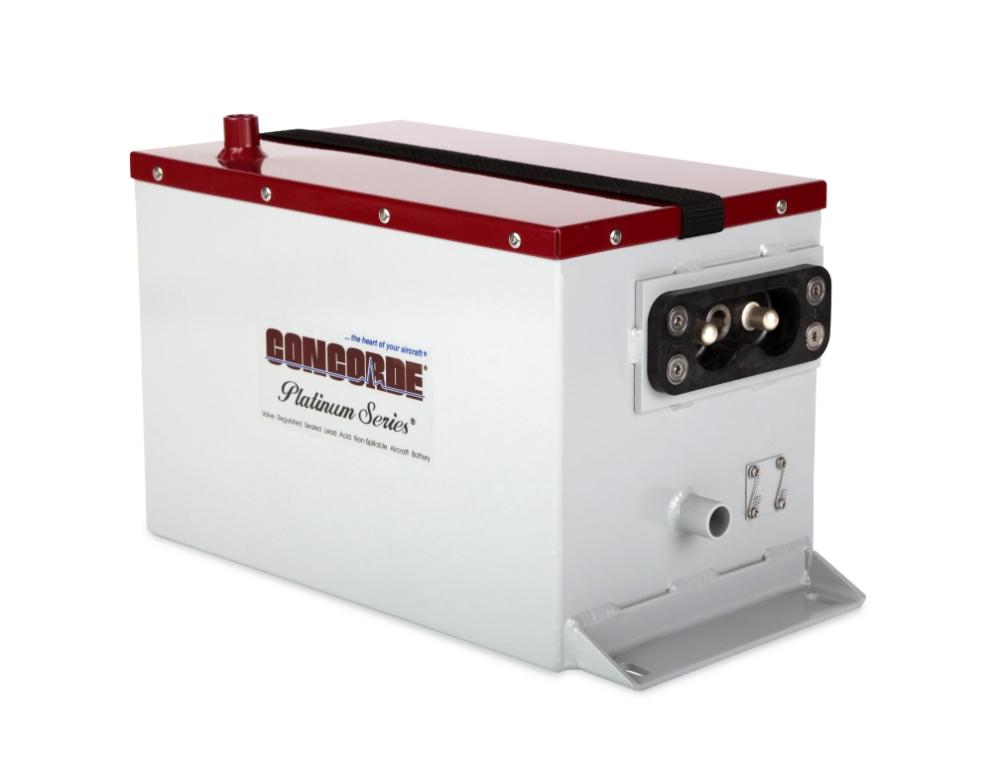

Click to enlarge

Description of the RG-223 Aircraft Battery:

Recombinant Gas - The RG® Series are low resistance, valve regulated lead acid (VRLA) batteries.

Superior starting power

Reliable essential power in the event of a generator failure

Maintenance free

Constructed with non removable vent valves - no addition of electrolyte or water required

Aerobatic

Factory tested to assure airworthiness

Shipped fully charged and ready to install

Manufactured with absorbed glass mat separators (AGM)

RGĀ® Series batteries ship Hazmat Exempt

TSO-C173 Authorized battery in a powder coated aluminum container equipped with a temp sensor mounting pad and built in vent tube. Powder coated cover is equipped with a top vent tube and lifting strap.
