The RG-390E/25 Aircraft Battery From
Concorde^® Battery Corporation The RG-390E/25 is a Concorde^® Platinum Series^® Aircraft Battery. The Platinum Series^® is comprised of premium hand made AGM Aircraft Batteries with excess power for many applications.

RG-390E/25 Battery Specifications:

Battery Specifications
Primary Aircraft Purpose	Turbine Starting Aircraft Battery
Voltage	24v
Rated Capacity C1 = 1 hr. rate in ampere hours	25
Max Weight	53 lb / 24 kg

Concorde^® Battery Part Number	IPP	IPR	IPP	IPR	IPP	IPR
	23°C (74°F)		-18°C (0°F)		-30°C (-22°F)
	A	A	A	A	A	A
RG-390E/25	1000	650	750	600	550	450

Specifications subject to change without notice.

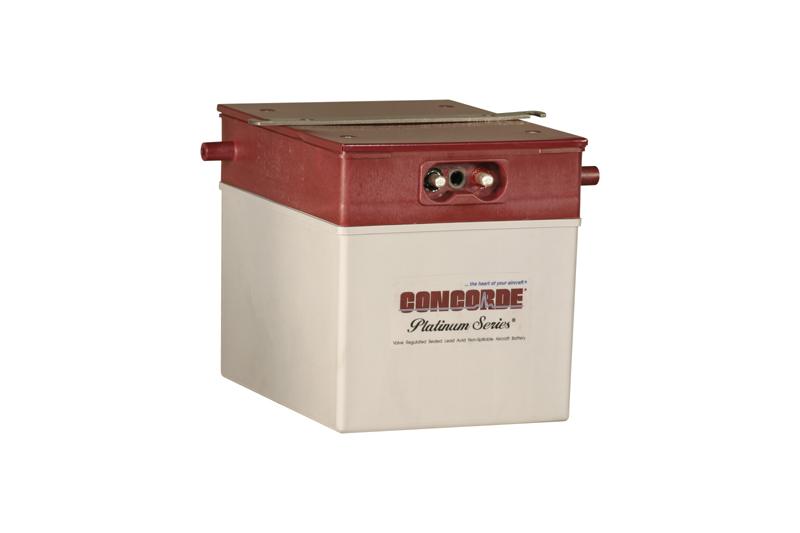

Concorde Aircraft Batteries model RG-390E/25
Click to enlarge

Description of the RG-390E/25 Aircraft Battery:

The recombinant gas RG® Series VRLA-AGM batteries are known for superior starting power with quick, cool operation in all conditions without the threat of thermal runaway. Less initial cost than NiCd, no deep cycling, and maintenance free design reducing operating costs per hour.
Concorde recombinant gas valve regulated lead acid batteries for engine starting, emergency / essential power, and standby power applications are constructed with cutting edge Absorbed Glass Mat (AGM) technology.
Concorde™s proprietary PolyGuard® Microporous Polyethylene Separator shields the positive plates against shorting, shock or vibration. No other manufacturer offers this dual layer insulation protection feature.

Reliable essential power in the event of a generator failure

Low impedance design

Maintenance free AGM Battery

Constructed with non removable vent valves - no addition of electrolyte or water required

Aerobatic

Factory tested to assure airworthiness

Shipped fully charged

RGÂ® Series batteries ship HAZMAT EXEMPT

RG-390E/25 is a polypropylene battery with side vent tubes and a powder coated aluminum cover with hold down bar.

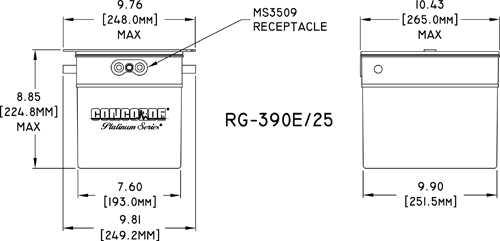

RG-390E/25 Concorde Aircraft Battery Drawing

The data/information contained herein has been reviewed and approved for general release on the basis that this document contains no export-controlled information.
