The RG-47 Aircraft Battery From
Concorde^® Battery Corporation The RG-47 is a Concorde^® Platinum Series^® Aircraft Battery. The Platinum Series^® is comprised of premium hand made AGM Aircraft Batteries with excess power for many applications.

RG-47 Battery Specifications:

Battery Specifications
Primary Aircraft Purpose	Turbine Starting Aircraft Battery
Voltage	24v
Rated Capacity C1 = 1 hr. rate in ampere hours	17
Max Weight	43 lb / 19.5 kg

Concorde^® Battery Part Number	IPP	IPR	IPP	IPR	IPP	IPR
	23°C (74°F)		-18°C (0°F)		-30°C (-22°F)
	A	A	A	A	A	A
RG-47	900	625	600	425	450	300

Specifications subject to change without notice.

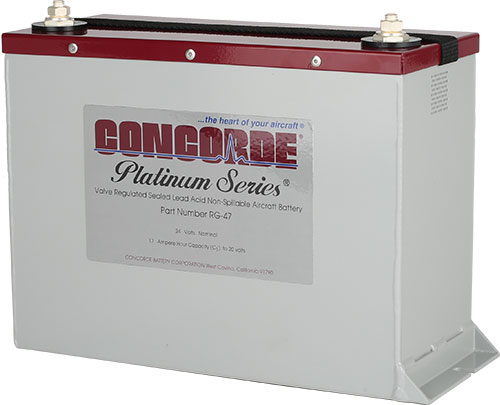

Concorde Aircraft Batteries model RG-47
Click to enlarge

Description of the RG-47 Aircraft Battery:

Concorde recombinant gas (RG® Series) valve regulated lead acid (VRLA) batteries for engine starting. Constructed with Concorde™s proprietary PolyGuard„¢ Microporous Polyethylene Separator, shielding the positive plates against shorting, shock or vibration. No other manufacturer offers this dual layer insulation protection feature.

Superior starting power

Reliable essential power in the event of a generator failure

Low impedance design

Maintenance free AGM battery

Constructed with non removable vent valves - no addition of electrolyte or water required

Aerobatic

Factory tested to assure airworthiness

Shipped fully charged

RGÂ® Series batteries ship HAZMAT EXEMPT

RG-47 is is fire resistant powder coated aluminum container with perforated vent areas machined into each side of the container. Two metal foot brackets are welded to the bottom of each side of the container. Aluminum powder coated cover is riveted to the container and the terminals at the top are male threaded posts.

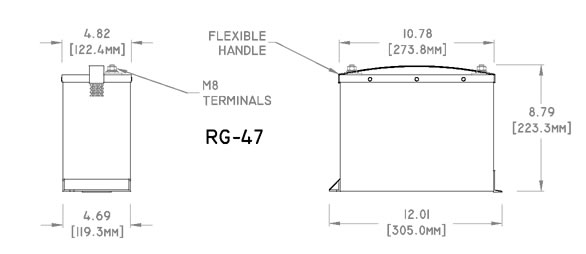

RG-47 Concorde Aircraft Battery Drawing

The data/information contained herein has been reviewed and approved for general release on the basis that this document contains no export-controlled information.
