The RG-427 Aircraft Battery From
Concorde® Battery Corporation The RG-427 is a Concorde® Platinum Series® Aircraft Battery. The Platinum Series® is comprised of premium hand made AGM Aircraft Batteries with excess power for many applications.

RG-427 Battery Specifications:
Battery Specifications
Primary Aircraft Purpose Helicopter and Turbine Aircraft Battery
Voltage 24v
Rated Capacity C1 = 1 hr.
rate in ampere hours 		34
Max Weight 79 lb / 35.8 kg
Concorde® Battery
Part Number		 IPP IPR IPP IPR IPP IPR
23°C (74°F) -18°C (0°F) -30°C (-22°F)
A A A A A A
RG-427 18001200 1325650 1025500

Specifications subject to change without notice.

Related Information:
Printable RG-427 Battery Specifications
RG-427 Battery Outline Drawing (PDF)
RG-427 Transportation Information
RG-427 SDS
IPP and IPR (International Electrotechnical Commission (IEC) Standard 952-1) Ratings Defined

Aircraft Battery Applications:
RG-427 Certified Battery Installations.
Click Here to See if this Battery Fits in Your Airplane
Click Here to See if this Battery is Certified for Your Airplane

Concorde Aircraft Batteries model RG-427
Click to enlarge

Description of the RG-427 Aircraft Battery:


Turbine engine starting and back up power battery for helicopter applications.
Recombinant Gas - The RG® Series are low resistance, valve regulated lead acid (VRLA) batteries.
  • Superior starting power
  • Reliable essential power in the event of a generator failure
  • Low impedance design
  • Maintenance free
  • Constructed with non removable vent valves - no addition of electrolyte or water required
  • Aerobatic
  • Factory tested to assure airworthiness
  • Shipped fully charged and ready to install
  • Manufactured with absorbed glass mat separators (AGM)
  • RG� Series batteries ship Hazmat EXEMPT (regular shipping).

    • Fire resistant powder coated aluminum cover and container riveted together, built in vent tubes and temperature sensor mounting plate.

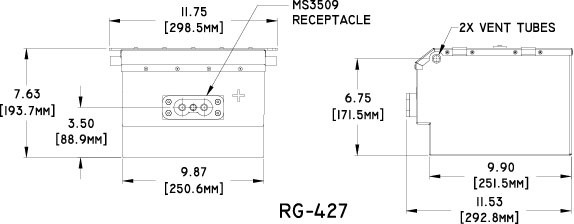

    RG-427 Concorde Aircraft Battery Drawing
