The RG-380E/44LSH Aircraft Battery From
Concorde^® Battery Corporation The RG-380E/44LSH is a Concorde^® Platinum Series^® Aircraft Battery. The Platinum Series^® is comprised of premium hand made AGM Aircraft Batteries with excess power for many applications.

RG-380E/44LSH Battery Specifications:

Battery Specifications
Primary Aircraft Purpose	Turbine Starting Aircraft Battery
Voltage	24v
Rated Capacity C1 = 1 hr. rate in ampere hours	42
Max Weight	91 lb / 41.3 kg

Concorde^® Battery Part Number	IPP	IPR	IPP	IPR	IPP	IPR
	23°C (74°F)		-18°C (0°F)		-30°C (-22°F)
	A	A	A	A	A	A
RG-380E/44LSH	1350	1000	875	750	750	600

Specifications subject to change without notice.

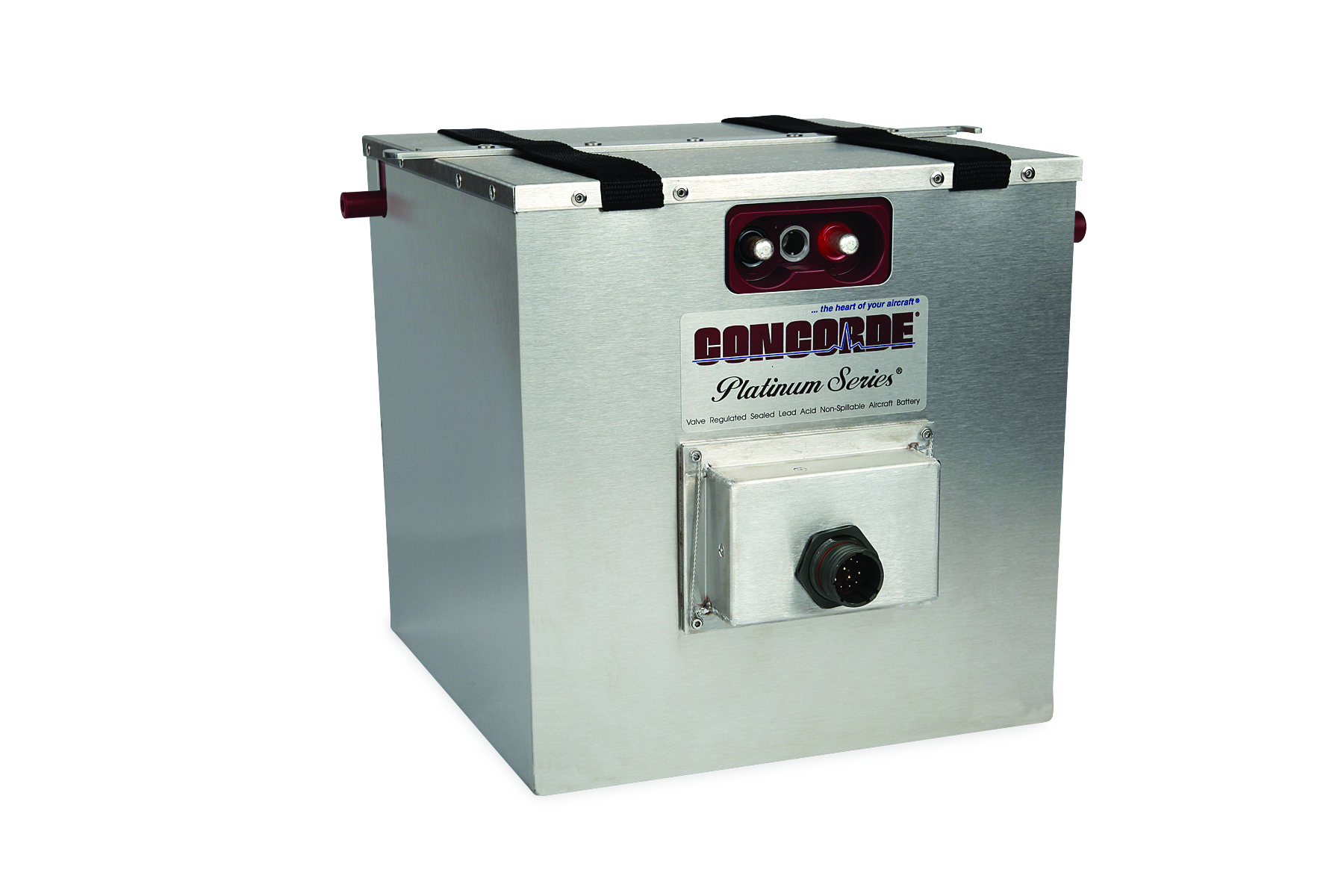

Concorde Aircraft Batteries model RG-380E/44LSH
Click to enlarge

Description of the RG-380E/44LSH Aircraft Battery:

Concorde recombinant gas (RG® Series) valve regulated lead acid (VRLA) batteries for engine starting, emergency / essential power, and standby power applications are constructed with cutting edge Absorbed Glass Mat (AGM) technology. Concordeâ€™s proprietary PolyGuardâ„¢ Microporous Polyethylene Separator shields the positive plates against shorting, shock or vibration. No other manufacturer offers this dual layer insulation protection feature.
Since 1986, Concorde recombinant gas RG® Series AGM-VRLA batteries have been adopted by the majority of military and corporate users worldwide for all types of aircraft.

Superior starting power

Reliable essential power in the event of a generator failure

Low impedance design

Maintenance free

Constructed with non removable vent valves - no addition of electrolyte or water required

Internal AC Heater - 115VAC

Internal DC Heater - 28VDC

Aerobatic

Factory tested to assure airworthiness

Shipped fully charged

RG® Series batteries ship HAZMAT EXEMPT

RG-380E/40LSH is a fireproof stainless steel container with side vent tubes and stainless steel hold down bar. Fabric lifting straps are incorporated for ease of handling.

**Concorde RG-380E/44LSH assembly as shown in the photo above consists of the RG-380E/44LSH battery and a Heater Control Unit (HCU). HCU types vary in style for use in multiple configurations. For HCU information please reference Concorde Battery Accessories.

RG-380E/44LSH Concorde Aircraft Battery Drawing

The data/information contained herein has been reviewed and approved for general release on the basis that this document contains no export-controlled information.
