The RG-380E/60KH Aircraft Battery From
Concorde^® Battery Corporation The RG-380E/60KH is a Concorde^® Platinum Series^® Aircraft Battery. The Platinum Series^® is comprised of premium hand made AGM Aircraft Batteries with excess power for many applications.

RG-380E/60KH Battery Specifications:

Battery Specifications
Primary Aircraft Purpose	Turbine Starting Aircraft Battery
Voltage	24v
Rated Capacity C1 = 1 hr. rate in ampere hours	48
Max Weight	96 lb / 43.6 kg

Concorde^® Battery Part Number	IPP	IPR	IPP	IPR	IPP	IPR
	23°C (74°F)		-18°C (0°F)		-30°C (-22°F)
	A	A	A	A	A	A
RG-380E/60KH	1600	1200	1200	950	900	700

Specifications subject to change without notice.

Concorde Aircraft Batteries model RG-380E/60KH
Click to enlarge

Description of the RG-380E/60KH Aircraft Battery:

RG® Series batteries - Valve Regulated Lead Acid (VRLA). The Concorde turbine starting battery will outperform a well serviced nickel cadmium at low temperatures, provide safe and reliable operation at high temperatures, and is capable of multiple engine starts with short flight durations.

Certified battery for turbine and piston engine aircraft models

Certified nickel cadmium battery replacement in many aircraft

Superior starting power

Reliable essential power in the event of a generator failure

Low impedance design

Maintenance free

Constructed with non removable vent valves - no addition of electrolyte or water required

Internal AC Heater - 115VAC

Internal DC Heater - 28VDC

Aerobatic

Factory tested to assure airworthiness

Shipped fully charged

RGÂ® Series batteries ship HAZMAT EXEMPT

RG-380E/60KH is a fire resistant powdered coated aluminum container and cover with integrated side louvered vents. Fabric lifting straps and hold down bar attached to cover.

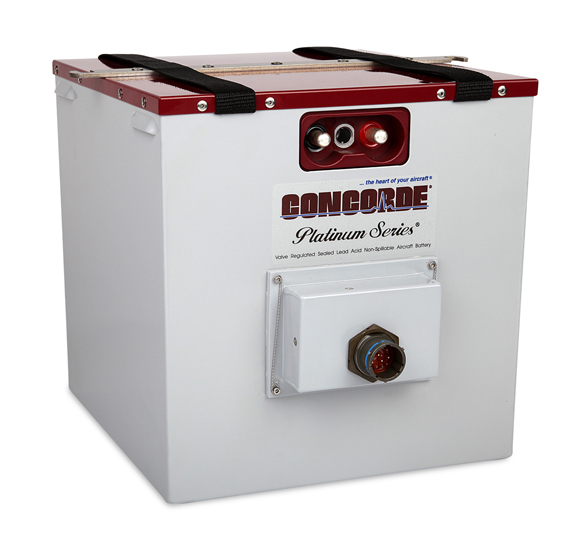

**Concorde RG-380E/60KH assembly as shown in the photo above consists of the RG-380E/60KH battery and a Heater Control Unit (HCU). HCU types vary in style for use in multiple configurations. For HCU information please reference Concorde Battery Accessories.

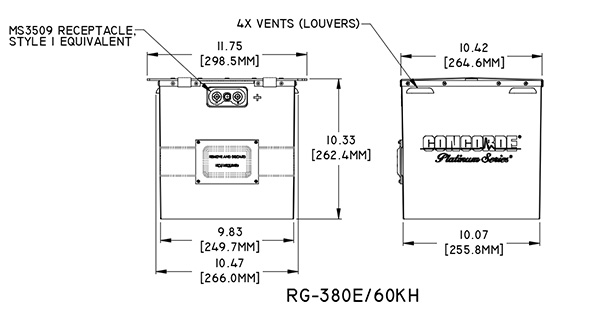

RG-380E/60KH Concorde Aircraft Battery Drawing

The data/information contained herein has been reviewed and approved for general release on the basis that this document contains no export-controlled information.
