The RG-91 Aircraft Battery From
Concorde^® Battery Corporation The RG-91 is a Concorde^® Platinum Series^® Aircraft Battery. The Platinum Series^® is comprised of premium hand made AGM Aircraft Batteries with excess power for many applications.

RG-91 Battery Specifications:

Battery Specifications
Primary Aircraft Purpose	Turbine Starting Aircraft Battery
Voltage	24v
Rated Capacity C1 = 1 hr. rate in ampere hours	22
Max Weight	55 lb / 24.9 kg

Concorde^® Battery Part Number	IPP	IPR	IPP	IPR	IPP	IPR
	23°C (74°F)		-18°C (0°F)		-30°C (-22°F)
	A	A	A	A	A	A
RG-91	1615	910	1504	691	1513	469

Specifications subject to change without notice.

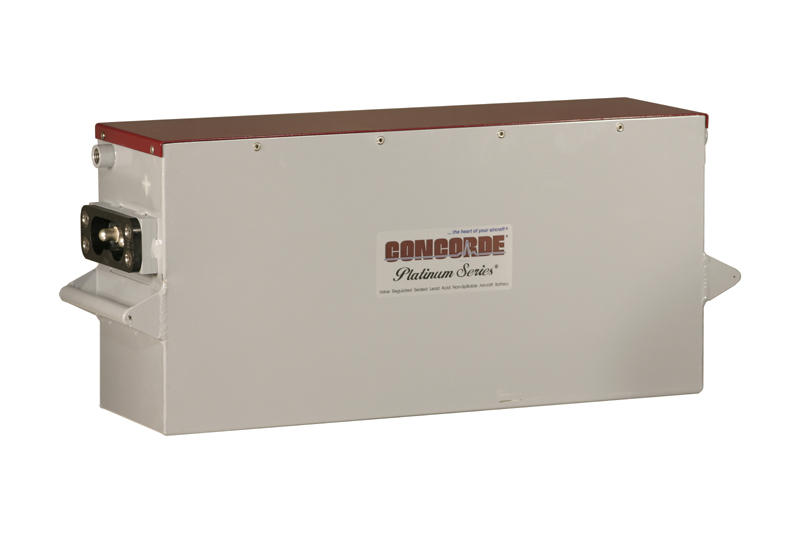

Concorde Aircraft Batteries model RG-91
Click to enlarge

Description of the RG-91 Aircraft Battery:

Concorde™s recombinant gas (RG® Series) valve regulated lead acid absorbed glass mat (VRLA-AGM) battery design has been proven and adopted by commercial airframe manufacturers and the military worldwide, including the Canadian, British, Australian, U.S.A. and other foreign forces.

Certified battery

Superior starting power

Reliable essential power in the event of a generator failure

Low impedance design

Maintenance free AGM battery

Constructed with non removable vent valves - no addition of electrolyte or water required

Aerobatic

Factory tested to assure airworthiness

Shipped fully charged

RGÂ® Series batteries ship HAZMAT EXEMPT

Concorde VRLA-AGM batteries are well known for quality and their ability to perform reliably in hot & cold climates with superior engine starting performance and excellent charge acceptance.

RG-91 Concorde Aircraft Battery Drawing

The data/information contained herein has been reviewed and approved for general release on the basis that this document contains no export-controlled information.
