The RG-624 Aircraft Battery From
Concorde® Battery Corporation The RG-624 is a Concorde® Platinum Series® Aircraft Battery. The Platinum Series® is comprised of premium hand made AGM Aircraft Batteries with excess power for many applications.

RG-624 Battery Specifications:
Battery Specifications
Primary Aircraft Purpose Helicopter and Turbine Aircraft Battery
Voltage 24v
Rated Capacity C1 = 1 hr.
rate in ampere hours 		24
Max Weight 52 lb / 23.6 kg
Concorde® Battery
Part Number		 IPP IPR IPP IPR IPP IPR
23°C (74°F) -18°C (0°F) -30°C (-22°F)
A A A A A A
RG-624 1025650 725500 575400

Specifications subject to change without notice.

Related Information:
Printable RG-624 Battery Specifications
RG-624 Battery Outline Drawing (PDF)
RG-624 Transportation Information
RG-624 SDS
IPP and IPR (International Electrotechnical Commission (IEC) Standard 952-1) Ratings Defined

Aircraft Battery Applications:
RG-624 Certified Battery Installations.
Click Here to See if this Battery Fits in Your Airplane
Click Here to See if this Battery is Certified for Your Airplane

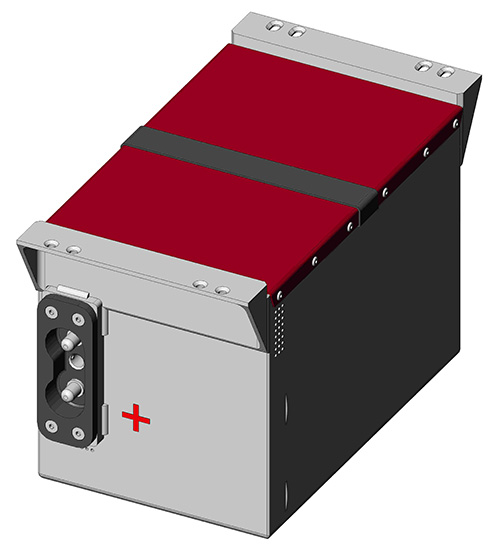

Concorde Aircraft Batteries model RG-624
Click to enlarge

Description of the RG-624 Aircraft Battery:

Concorde™s recombinant gas (RG® Series) valve regulated lead acid absorbed glass mat (VRLA-AGM) battery design has been proven and adopted by commercial airframe manufacturers and the military worldwide, including U.S. and foreign air forces.
  • Certified battery for turbine and piston engine aircraft models
  • Certified nickel cadmium battery replacement in many aircraft
  • Superior starting power
  • Reliable essential power in the event of a generator failure
  • Low impedance design
  • Maintenance free AGM battery
  • Constructed with non removable vent valves - no addition of electrolyte or water required
  • Aerobatic
  • Factory tested to assure airworthiness
  • Shipped fully charged
  • RG® Series batteries ship HAZMAT EXEMPT
  • TSO Approved

    • RG-624 is housed in a powder coated aluminum container with side vent tubes.

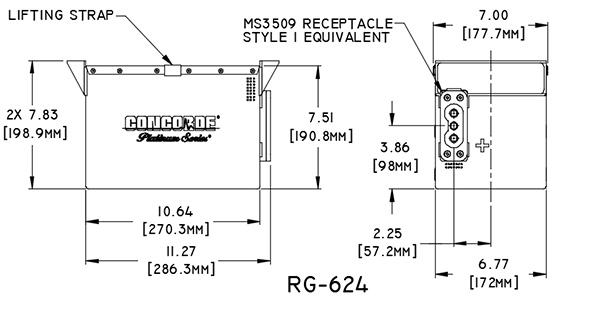

    RG-624 Concorde Aircraft Battery Drawing

    The data/information contained herein has been reviewed and approved for general release on the basis that this document contains no export-controlled information.
