The RG-206 Aircraft Battery From
Concorde^® Battery Corporation The RG-206 is a Concorde^® Platinum Series^® Aircraft Battery. The Platinum Series^® is comprised of premium hand made AGM Aircraft Batteries with excess power for many applications.

RG-206 Battery Specifications:

Battery Specifications
Primary Aircraft Purpose	Helicopter and Turbine Aircraft Battery
Voltage	24v
Rated Capacity C1 = 1 hr. rate in ampere hours	17
Max Weight	42 lb / 19.1 kg

Concorde^® Battery Part Number	IPP	IPR	IPP	IPR	IPP	IPR
	23°C (74°F)		-18°C (0°F)		-30°C (-22°F)
	A	A	A	A	A	A
RG-206	900	625	600	425	450	300

Specifications subject to change without notice.

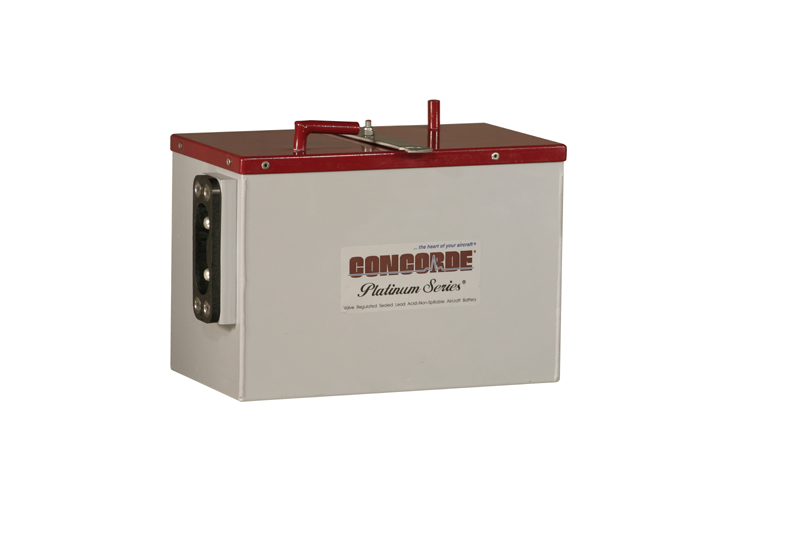

Concorde Aircraft Batteries model RG-206
Click to enlarge

Description of the RG-206 Aircraft Battery:

Recombinant Gas - The RG® Series are low resistance, valve regulated lead acid (VRLA) batteries.

Superior starting power

Reliable essential power in the event of a generator failure

Low impedance design

Maintenance free

Constructed with non removable vent valves - no addition of electrolyte or water required

Aerobatic

Factory tested to assure airworthiness

Shipped fully charged and ready to install

Manufactured with absorbed glass mat separators (AGM)

RG® Series batteries ship non-HAZMAT

RG-206 is housed in an aluminum container with MS3509 terminal receptacle and cover with top hold down bar. The battery cover is attached to the container with high retention rivets. Vent tubes are integrated into the cover.

RG-206 Concorde Aircraft Battery Drawing

The data/information contained herein has been reviewed and approved for general release on the basis that this document contains no export-controlled information.
