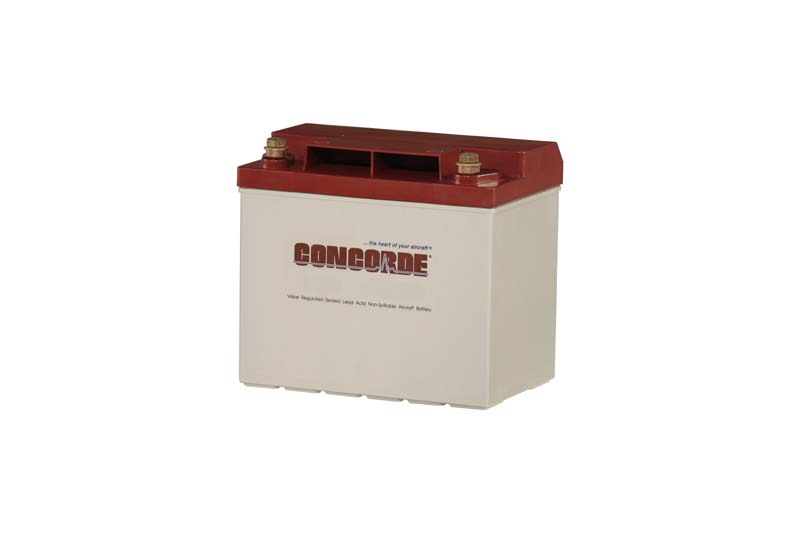

The RG-25 Aircraft Battery From
Concorde^® Battery Corporation RG-25 Premium Concorde^® Aircraft Battery Specifications:

Battery Specifications

Primary Aircraft Purpose	General Aviation AGM Aircraft Battery
Voltage	12v
Rated Capacity C1 = 1 hr. rate in ampere hours	22
Cold Cranking Amps	225
Max Weight	22.75 lb / 10.3 kg

Concorde® Battery Part Number	IPP	IPR	IPP	IPR	IPP	IPR
	23°C (74°F)		-18°C (0°F)		-30°C (-22°F)
	A	A	A	A	A	A
RG-25	700	500	450	375	325	250

Specifications subject to change without notice.

Related Information:
Printable RG-25 Battery Specifications
RG-25 Battery Outline Drawing (PDF)
RG-25 Transportation Information
RG-25 SDS
IPP and IPR (International Electrotechnical Commission (IEC) Standard 952-1) Ratings Defined

Aircraft Battery Applications:
RG-25 Certified Battery Installations.
Click Here to See if this Battery Fits in Your Airplane
Click Here to See if this Battery is Certified for Your Airplane

Click to enlarge

Description of the RG-25 Aircraft Battery:

Recombinant Gas - The RG® Series are low resistance, valve regulated lead acid (VRLA) batteries.

Superior starting power

Reliable essential power in the event of a generator failure

Low impedance design

Battery is constructed with non removable vent valves

No addition of electrolyte or water ever required for this maintenance free aircraft battery.

This is a non spillable battery at any altitude or attitude

Factory tested to assure airworthiness

Shipped fully charged and ready to install

AGM Battery: Manufactured with absorbed glass mat separators

RGĀ® Series batteries ship non-HAZMAT

NOTE: This aircraft battery is not designed or intended for turbine aircraft engine starting applications. Warranty coverage applies to reciprocating aircraft engine starting, and standby / essential power installations.
