The RG24-20 Aircraft Battery From
Concorde^® Battery Corporation The RG24-20 is a Concorde^® Platinum Series^® Aircraft Battery. The Platinum Series^® is comprised of premium hand made AGM Aircraft Batteries with excess power for many applications.

RG24-20 Battery Specifications:

Battery Specifications
Primary Aircraft Purpose	General Aviation AGM Aircraft Battery
Voltage	24v
Rated Capacity C1 = 1 hr. rate in ampere hours	19
Cold Cranking Amps	225
Max Weight	42 lb / 19.1 kg

Concorde^® Battery Part Number	IPP	IPR	IPP	IPR	IPP	IPR
	23°C (74°F)		-18°C (0°F)		-30°C (-22°F)
	A	A	A	A	A	A
RG24-20	900	600	600	475	475	375

Specifications subject to change without notice.

Concorde Aircraft Batteries model RG24-20
Click to enlarge

Description of the RG24-20 Aircraft Battery:

Recombinant Gas - The RG® Series are low resistance, valve regulated lead acid (VRLA) batteries.

Superior starting power

Reliable essential power in the event of a generator failure

Low impedance design

Maintenance free

Constructed with non removable vent valves - no addition of electrolyte or water required

Aerobatic

Factory tested to assure airworthiness

Shipped fully charged and ready to install

Manufactured with absorbed glass mat separators (AGM)

Manufactured with proprietary PolyGuardÂ® protection for longer battery life

RGÂ® Series batteries ship HAZMAT Exempt.

NOTE: This aircraft battery is not designed or intended for turbine aircraft engine starting applications. Warranty coverage applies to reciprocating aircraft engine starting, and standby / essential power installations.

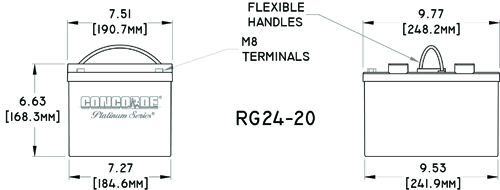

RG24-20 Concorde Aircraft Battery Drawing

The data/information contained herein has been reviewed and approved for general release on the basis that this document contains no export-controlled information.
