The RG-390E Aircraft Battery From
Concorde^® Battery Corporation The RG-390E is a Concorde^® Platinum Series^® Aircraft Battery. The Platinum Series^® is comprised of premium hand made AGM Aircraft Batteries with excess power for many applications.

RG-390E Battery Specifications:

Battery Specifications
Primary Aircraft Purpose	Turbine Starting Aircraft Battery
Voltage	24v
Rated Capacity C1 = 1 hr. rate in ampere hours	28
Max Weight	62 lb / 28.1 kg

Concorde^® Battery Part Number	IPP	IPR	IPP	IPR	IPP	IPR
	23°C (74°F)		-18°C (0°F)		-30°C (-22°F)
	A	A	A	A	A	A
RG-390E	1350	950	1025	800	800	600

Specifications subject to change without notice.

Concorde Aircraft Batteries model RG-390E
Click to enlarge

Description of the RG-390E Aircraft Battery:

The recombinant gas RGÂ® Series VRLA-AGM batteries are known for superior starting power with quick, cool operation in all conditions without the threat of thermal runaway. Less initial cost than NiCd, no deep cycling, and maintenance free design reducing operating costs per hour.
Concorde recombinant gas valve regulated lead acid batteries for engine starting, emergency / essential power, and standby power applications are constructed with cutting edge Absorbed Glass Mat (AGM) technology.
Concorde™s proprietary PolyGuard Microporous Polyethylene Separator shields the positive plates against shorting, shock or vibration. No other manufacturer offers this dual layer insulation protection feature.

Certified nickel cadmium battery replacement

OEM and certified on many models from fixed wing to rotor

Reliable essential power in the event of a generator failure

Low impedance design

Maintenance free AGM Battery

Constructed with non removable vent valves - no addition of electrolyte or water required

Aerobatic

Factory tested to assure airworthiness

Shipped fully charged

RGÂ® Series batteries ship HAZMAT EXEMPT

RG-390E is a polypropylene battery with side vent tubes, a powder coated aluminum cover with hold down bar and new lifting straps.

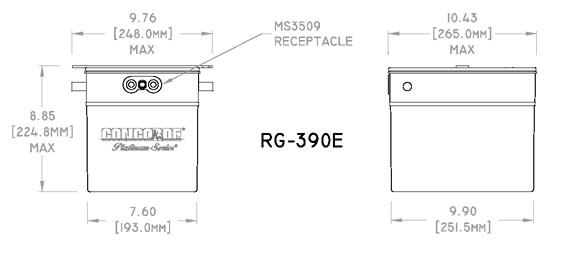

RG-390E Concorde Aircraft Battery Drawing

The data/information contained herein has been reviewed and approved for general release on the basis that this document contains no export-controlled information.
