The RG-380E/60B Aircraft Battery From
Concorde^® Battery Corporation The RG-380E/60B is a Concorde^® Platinum Series^® Aircraft Battery. The Platinum Series^® is comprised of premium hand made AGM Aircraft Batteries with excess power for many applications.

RG-380E/60B Battery Specifications:

Battery Specifications
Primary Aircraft Purpose	Turbine Starting Aircraft Battery
Voltage	24v
Rated Capacity C1 = 1 hr. rate in ampere hours	48
Max Weight	96 lb / 43.6 kg

Concorde^® Battery Part Number	IPP	IPR	IPP	IPR	IPP	IPR
	23°C (74°F)		-18°C (0°F)		-30°C (-22°F)
	A	A	A	A	A	A
RG-380E/60B	1600	1200	1200	950	900	700

Specifications subject to change without notice.

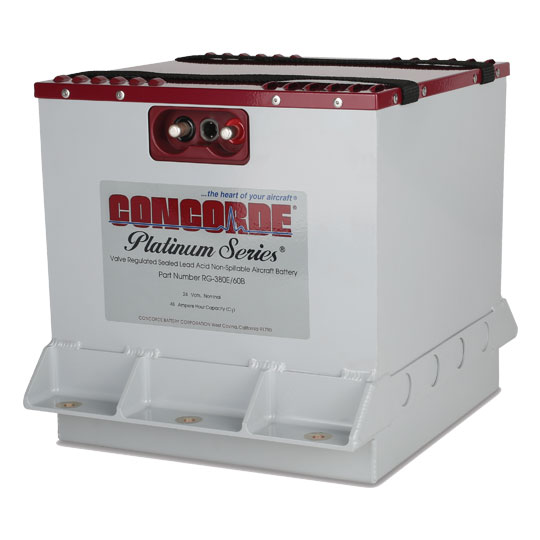

Concorde Aircraft Batteries model RG-380E/60B
Click to enlarge

Description of the RG-380E/60B Aircraft Battery:

Recombinant Gas RG® Series batteries - Valve Regulated Lead Acid manufactured with Absorbent Glass Mat (VRLA-AGM)

This aircraft battery is constructed with louvered vents within the aluminum cover. Lifting straps are incorporated for ease of handling. Footed hold downs are integrated into the bottom of the container.

Superior starting power

Reliable essential power in the event of a generationg system failure

Low impedance design

Maintenance free

Constructed with non removable vent valves - no addition of electrolyte or water required

Aerobatic

Factory tested to assure airworthiness

Dispatched from the factory fully charged

Concorde aircraft batteries rated for engine starting may be used for emergency power and stand by applications

RGÂ® Series batteries ship Hazmat EXEMPT

TSO Authorized product.

RG-380E/60B Concorde Aircraft Battery Drawing

The data/information contained herein has been reviewed and approved for general release on the basis that this document contains no export-controlled information.
