The RG-380E/60LS Aircraft Battery From
Concorde^® Battery Corporation The RG-380E/60LS is a Concorde^® Platinum Series^® Aircraft Battery. The Platinum Series^® is comprised of premium hand made AGM Aircraft Batteries with excess power for many applications.

RG-380E/60LS Battery Specifications:

Battery Specifications
Primary Aircraft Purpose	Turbine Starting Aircraft Battery
Voltage	24v
Rated Capacity C1 = 1 hr. rate in ampere hours	48
Max Weight	98 lb / 44.5 kg

Concorde^® Battery Part Number	IPP	IPR	IPP	IPR	IPP	IPR
	23°C (74°F)		-18°C (0°F)		-30°C (-22°F)
	A	A	A	A	A	A
RG-380E/60LS	1600	1200	1200	950	900	700

Specifications subject to change without notice.

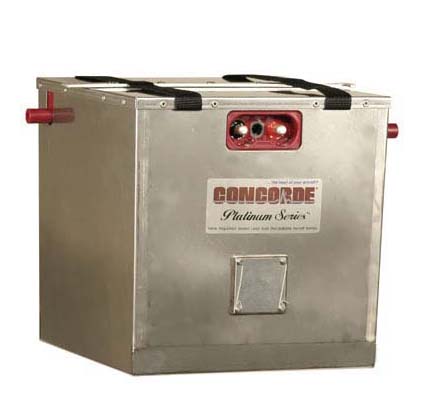

Concorde Aircraft Batteries model RG-380E/60LS
Click to enlarge

Description of the RG-380E/60LS Aircraft Battery:

The recombinant gas RG® Series VRLA-AGM batteries are known for superior starting power with quick, cool operation in all conditions without the threat of thermal runaway. Less initial cost than NiCd, no deep cycling, and maintenance free design reducing operating costs per hour.
Since 1986, Concorde recombinant gas RG® Series AGM-VRLA batteries have been adopted by the majority of military and corporate users worldwide for all types of aircraft.

Reliable essential power in the event of a generator failure

Low impedance design

Maintenance free

Constructed with non removable vent valves - no addition of electrolyte or water required

Aerobatic

Factory tested to assure airworthiness

Shipped fully charged

RGÂ® Series batteries ship HAZMAT EXEMPT

RG-380E/60LS is a fireproof stainless container with side vent tubes and stainless cover with fabric lifting straps and hold down bar. Stainless temperature sensor mounting pad in front. Concorde temperature sensors are available on the Accessories pages.

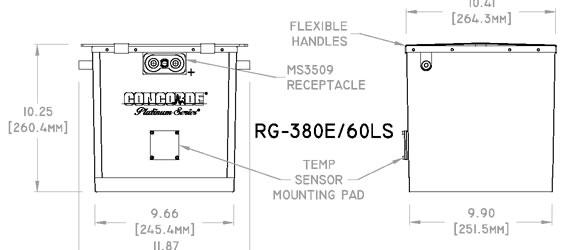

RG-380E/60LS Concorde Aircraft Battery Drawing

The data/information contained herein has been reviewed and approved for general release on the basis that this document contains no export-controlled information.
