Certified Replacement Batteries
for the MD Helicopters 369F

The Concorde Batteries listed below are certified battery replacements for the MD Helicopters 369F .
It is the installers responsibility to verify the aircraft manufacturer's original battery part number prior to each installation.
To view corresponding FAA/PMA or STC information click here.
Aircraft
Manufacturer		 Aircraft
Model		 Battery VoltagePlatinum Series®
(Click For More)		Standard Equipment
(Click For More)		Remarks / Comments STC/FAA-PMACertificate Holder
MD Helicopters 369F 24 RG-624  RG-624 Battery with connector P/N 4002 and placard 8481 replaces nickel cadmium battery part numbers 369D296503 or 369D296503-503 or 369D296503-505 or 369D296503-507 or 369D296503-509 or lead acid part numbers RG-500, RG-600-1 or RG-600-2 installed by STC SR00716SE or SR01564LA. STC SR00864DE
Concorde Battery
MD Helicopters 369F 24 RG-500  To replace nickel-cadmium battery
Connector: CBP: 3349-2W
Adapter: 9542		 STC# SR00716SE
Advanced Power
The RG-624 from Concorde Battery is a certified replacement for the MD Helicopters 369F
RG-624		 The RG-500 from Concorde Battery is a certified replacement for the MD Helicopters 369F
RG-500
Concorde manufactures CB, RG®, and Platinum Series® Aircraft Batteries.
Click Here for Battery Series Information 		Click for Applicable FAA PMA Info

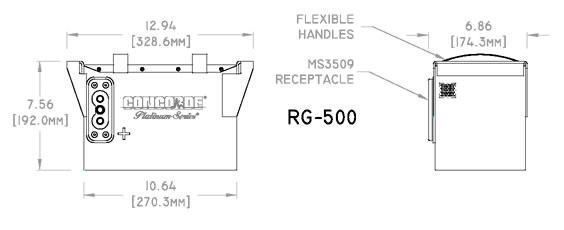

Click for Drawings Below
PRODUCT SPECIFICATIONS
Voltage Part Number Description Cold Cranking Amps Rated Capacity C1 = 1 hr. rate in ampere hours Weight
LbsKg
24 RG-624 Platinum Series ® 0.0 24.00 52.00 23.6
24 RG-500 Platinum Series ® 0.0 17.00 42.00 19.1
The RG-624 Concorde Aircraft Battery is Certified for the MD Helicopters 369F
The RG-500 Concorde Aircraft Battery is Certified for the MD Helicopters 369F
The Concorde Batteries listed above are certified battery replacements for the MD Helicopters 369F .
To view corresponding FAA/PMA or STC information for the MD Helicopters 369F click here.

RG® Series - Recombinant Gas Aircraft Batteries
Nonspillable at any altitude or any attitude. Valve Regulated Sealed Lead Acid. Shipped from the factory serviced and fully charged. No additional electrolyte or water required. Permanently sealed at the factory. 		CB Series - Dry Charged, Vented, Aircraft Batteries
Requires activation with electrolyte and charging by the end user prior to installation.
Platinum Series® - The Platinum Series® is comprised of premium hand made AGM Aircraft Batteries with excess power for many applications. Concorde sells Platinum Series® Batteries in both the CB, and RG® Battery Series.
